汽车高速线束在整车环境中的3D布置设计

打开文本图片集

中图分类号：U463.62 文献标识码：A 文章编号：1003-8639（2026）02-0070-03

Analysis on 3D Layout of Automotive High-Speed Wiring Harness in Vehicle Environment

HuangGuanjun，WeiQiang，LuZiguo，KangJincan，WangHongchao （Tianhai Automotive Electronics Group Co.， Ltd.， Hebi 458Ooo， China）

【Abstract】With the in-depth application of automotive inteligence and networking technologies，the amount of vehiclecommunication information has increased significantly，and ordinarywires canno longer meettheneedsof highspeed and large-capacitydata transmission. High-speed wiring harnesses are widelyused in core modules such as vehicle intelligentnetworking andassistedautonomousdrivingduetotheiradvantagesofhighdata transmisionrate，strongantiinterferenceability，smallsizeandhighintegration.Sincetheflexibilityofhigh-speedcablesissignificantlylowerthan thatofordinary wires，their layout design must met special technical requirements to avoidearlydesign failure ffecting the normal operation of vehicle functions.This paper discusses the composition and classification of high-speed wiring haresses，the principles of3D layout inthe whole vehicleand key technical requirements，providinga reference for the layout design of high-speed wiring harnesses.

【Key words】automotive high-speed wiring harness；3D layout;high-speed cable;high-speed connector; layout principle

0 引言

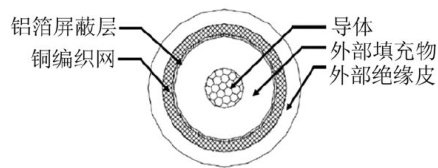

高速线束是采用同轴线缆、双芯屏蔽线缆、多芯屏蔽线缆等作为通信载体，搭配Fakra（射频连接器）、HSD（高速数据连接器）、H-MTD（高速模块化双绞线数据连接器）等专用接口，实现高速率信号传输的线束组件。（剩余3490字）
