石化企业污水处理场 VOCs 废气集中治理技术
打开文本图片集
引用格式：，等. 石化企业污水处理场 VOCs 废气集中治理技术[J]. 当代化工，2026, 55（4）：951-956.
WANG Quan, LIU Songyan, ZHAO Lei, et al. Centralized Treatment Technology for VOCs Waste Gas from Petrochemical Enterprise Wastewater Treatment Plants [J]. Contemporary Chemical Industry, 2026, 55(4): 951-956.
王泉 1 ，刘松岩 2 ，赵磊 2 ，刘洋 2
（1. 中国石化荆门石化公司，湖北荆门448002；
2. 116045）
中图分类号：TE992.1；TQ09
文献标志码：A
文章编号：1671-0460（2026）04-0951-06
Centralized Treatment Technology for VOCs Waste Gas from Petrochemical Enterprise Wastewater Treatment Plants
WANG Quan 1 , LIU Songyan 2 , ZHAO Lei 2 , LIU Yang 2
Sinopec Jingmen Petrochemical Company, Jingmen Hubei 448002, China;
2. Sinopec (Dalian) Research Institute of Petroleum and Petrochemicals Co., Ltd., Dalian Liaoning 116045, China)

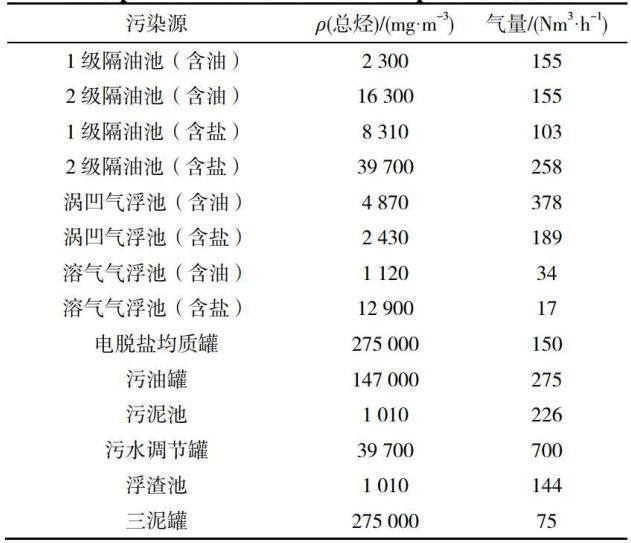

Abstract: Volatile organic compounds(VOCs) pollution sources in the wastewater treatment plant of a petrochemical enterprise in Hubei were monitored and analyzed. Based on the characteristics of each pollution source, the emissions were categorized into three streams: high mass concentration exhaust gas, medium mass concentration exhaust gas, and low mass concentration exhaust gas from the IBR tank. By classifying and pretreating exhaust gases of different mass concentrations before centralized advanced treatment, a complete combined process of "low-temperature diesel absorption-alkali washing desulfurization-desulfurization and total hydrocarbon concentration homogenization-regenerative thermal oxidation" has been developed. At first, high mass concentration exhaust gas enters the low-temperature diesel absorption tower to recover oil and gas resources and remove most sulfides, then proceeds to the alkali washing tower to eliminate residual hydrogen sulfide. Subsequently, it mixes with pretreated medium mass concentration exhaust gas and enters the desulfurization and total hydrocarbon concentration homogenization tank to stabilize the mass concentration. And then, low mass concentration exhaust gas from the IBR tank is introduced for mass concentration adjustment before finally entering the "regenerative thermal oxidation" unit for deep oxidation. Long-term operation results demonstrate that the process operates stably, with the non-methane total hydrocarbon mass concentration at the total discharge outlet consistently below 20 mg·m -3 and removal rate≥97%. Indicators such as benzene, toluene, xylene, and hydrogen sulfide all meet the design requirements of relevant domestic standards, achieving effective centralized treatment and near-zero emissions of VOCs exhaust gas from the petrochemical wastewater treatment plant.
Keywords: Sewage treatment plant; VOCs; Centralized treatment; Environment; Petroleum; Pollution; Waste treatment
随着全球工业化的快速发展，石油化工行业作为国民经济的重要支柱，在生产过程中产生了大量高浓度、高毒性的废水。（剩余9150字）
