面向生态园林作业的单向电机驱动修枝装备设计与性能

打开文本图片集

中图分类号：S776 文献标识码：A DOI：10.7525/j.issn.1006-8023.2026.01.017

Design and Performance Investigation of a Unidirectional Motor-Driven Pruner for Ecological Gardens

YUShaoxuan1，MA Jingyao²，MENG Zhaoxin'，LI Xin3*

（1.CollegeofMechanicalandEletricalEngineeing，NrthastForestryUniversity，Harbin50，China；2.Colegfoa

tionandElectricalEngineering，HeilongjiangBayiAgriculturalUniversityDaqing630o，China;3.SchoolofGeogaphyadTour ism，HarbinUniversity，Harbin15oo86，China）

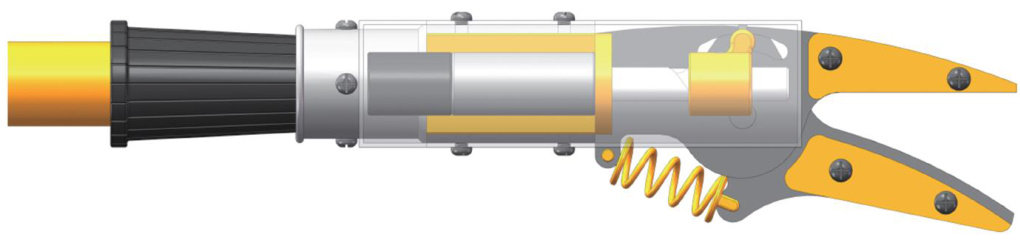

Abstract：With increasing demand for ecological garden maintenance，pruning equipment faces chalenges inefficiency，stability，and environmental performance.This study presents ahigh-effciency pruning device driven byaunidirectional motor.Byoptimizing the transmisionsystem and employing acustomized lead screw-nut structure，the motor cancompletebothcuting and reseting with asingle-direction rotation，avoiding theneed formotorreversal inconventionaldevices.Finiteelementanalysis verifiedthe staticand dynamic performanceofthecuting components and transmission system，ensuring suffcient strengthand stiffnessforlong-termoperation.Calculations indicated an upper-bound required thrust of approximately65ON（designbaseline）forthe motor-lead screw underthe worst-case static condition. Under the specified dynamic simulation condition，the peak thrust was about 38ON，meeting the cuting and reset requirements with suffcient margin.Through a series of cuting experiments，the working performance of the equipment underdiffrent branch diameters was evaluated.Results demonstrated that the device outperforms traditional manual toolsand standard electric pruners in eficiencyand energyconsumption，with strong continuous operation and energysaving characteristics.The equipment is wellsuited for ecological garden maintenance，meting the high-effciencyrequirements of ecological garden operations.

Keywords：Ecological gardens；unidirectional motor-driven；pruning equipment；finite element analysis；kinematic calculation

收稿日期：2025-09-23

基金项目：黑龙江省高等教育教学改革研究重点委托项目（SJGZ20220135）。（剩余11680字）
