毒性仪光电倍增管高压直流电源设计

打开文本图片集

中图分类号：TN152-34 文献标识码：A 文章编号：1004-373X（2026）06-0037-06

Design of high-voltage DC power supply for photomultiplier tubes for toxicity meter

YAO Lingli’，WANG Tao²，CHEN Dongfeng³， CHEN Qingrong³ （1.NanjingVocational Collegeof InformationTechnology，Nanjing21Oo23，China; 2.NanjingSaibao Industrial TechnologyResearch InstituteCo.，Ltd.，Nanjing2118Oo，China; 3.InstituteofSoilScience，ChineseAcademyofSciences，Nanjing211135，China）

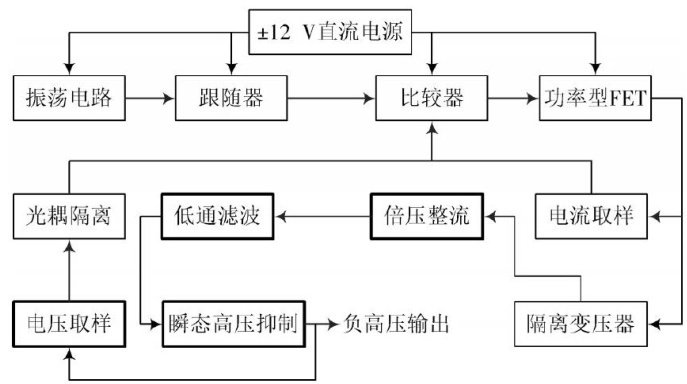

Abstract：Inorder tomet thedemandforstablehigh-voltagepowersupplyof photomultiplier（PMT）inphotoelectric toxicitytestinginstruments，adedicatedhigh-voltagedirectcurent （DC）powersuplyisesigned.AWienbridgeoscilatoris usedtogenerateasiusoidalsignal，whichiscomparedwithareferencelevelbyacomparatortoforapulse-widthmodulation （PWM）signal.Ametal-oxide-semiconductorfield-effcttransistor（MOSFET）isusedtodriveansolationtransforerandthe voltagebootingisrealizedbycombiningwithdiodevoltagedoublerrectifier.Anoperationalamplifieranddualotocouplersare usedtorealizelinearsamplingandisolatedoutput，andthereferencelevelofthecomparatorisadjustedtostabilizethevoltage. Forovervoltageprotectionatransientvoltagesuppressor（S）dodeisdoptedForovercurrentprotecion，asilonotrolle rectifier（SCR）istriggredbycurrentsamplingtocutoffthecurrentoftheprimarywinding.Thetestingresultsshowthatthe adjustableoutputofthedesignedpowersupplyisfrom80oVto120OV，therippleislessthanO.2%，thestaticpower consumptionisless thanO.5W，andtheeficiencyisgreaterthan7O%，whichcanensurethestableoperationof the photomultiplier tube and the reliable operation of the photoelectric toxicity tester.

Keywords：photomultiplier;high-voltagedirectcurrentpowersupply;photoelectrictoxicitytesting instrument;pulse-width modulation; diode voltage doubler rectifier;dual optocoupler isolation

0 引言

以费氏弧菌这一典型发光菌作为生物受体进行的生物毒性检测方法，其基本原理是：通过发光菌这类生物毒性传感器，对比受检样品与无毒标准样品的发光强度，以反映受检样品的毒性强度。（剩余8191字）
