空气补热型与耦合热泵型压缩空气储能系统供热能力研究

打开文本图片集

关键词：压缩空气储能系统；空气补热；热泵耦合

中图分类号：TB61；TB63文献标志码：A

DOI： 10.7652/xjtuxb202605003 文章编号： 0253-987X（2026）05-0024-11

Study on the Heating Capacity of Air-Supplemented Heating and Heat Pump-Coupled Compressed Air Energy Storage Systems

LI Baoqi1，HE Yang1，CHEN Haisheng²，XU Yujie²，DENG Jianqiang1 （1. School of Chemical Engineering and Technology，Xi'an Jiaotong University，Xi'an 71oo49，China; 2. Institute of Engineering Thermophysics，Chinese Academy of Sciences，Beijing l0ol90，China）

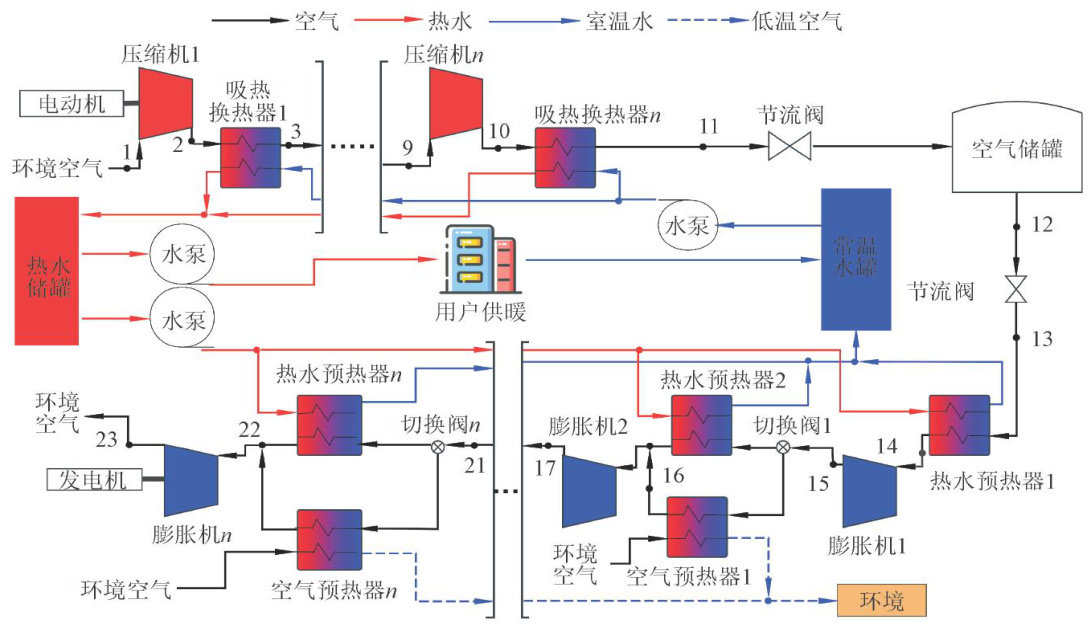

Abstract： In adiabatic compressed air energy storage（A-CAES） systems，the strong coupling of cold，heat，and electricity during operation leads to trade-offs in their outputs，and the heating capacity is insuficient compared to the power supply capacity. To address high-heating-demand scenarios，two coupled systems—air-supplemented heating （SH-CAES） and heat pump-coupled （HP-CAES）—are proposed to enhance the heating capacity of A-CAES. Based on the power and heating demands of a residential community of 6Oo households，three energy storage systems—A-CAES， SH-CAES，and HP-CAES-with a capacity of 3 MW/22.5 MW ·h were designed. By constructing thermodynamic models for the three systems， their performances under different ambient temperatures， compressor/expander stages，and preheated water flow rates were analyzed and compared. The results show that while meeting power supply requirements， SH-CAES achieves the highest heating efficiency （ HE ）of 98.7% in relatively low-temperature，high-latitude environments， representing a 33.7% improvement over conventional combined heat and power plants （CHTP）. HP-CAES achieves the highest HE of 133.05% in relatively high-temperature，low-latitude environments， representing a 68.05% improvement over CHTP. As the number of compressor stages，expander stages，and preheated water flow rate decrease， the external heat output of both SH-CAES and HP-CAES systems increases. Economic analysis results indicate that in low-latitude regions，the static payback periods for SH-CAES and HP-CAES are shortened by 20.75% and 31.08% ， respectively，compared to A-CAES，and by 43.26% and 52.28% ，respectively，compared to CHTP. This study provides new technical pathways and theoretical references for achieving low-carbon， efficient，and economical regional heating.

Keywords： compressed air energy storage； air preheating; heating efficiency; heat pump coupling

据统计数据显示，2023年全球风光弃电率高达8.3% ，由此导致年度经济损失超过120亿美元[1]在此背景下，储能技术因能量时移的功能被视为解决电力供需失衡问题的关键支撑技术。（剩余16304字）
