基于多级形状记忆合金驱动的变弯度机翼多状态变形模糊控制

打开文本图片集

关键词：变弯度机翼；形状记忆合金；柔性结构；模糊PID控制

中图分类号：V214;TP273

DOI：10.3969/j.issn.1004-132X.2026.03.017 开放科学（资源服务）标识码（OSID）：

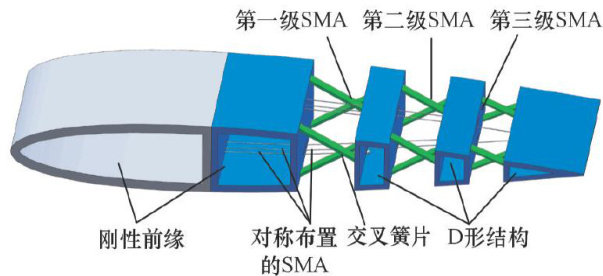

Abstract：The design continuously variable-camber wings integrating SMA flexible structures represented a crucial development direction for future morphing wings.To address complex flight environments deformation requirements，wings should possess multi-camber deformation adjustment capabilities precise control performance. A variable-camber wing structure was presented driven by a threestage SMA wire actuator combined with modular flexible components，along with a multi-state deformation fuzzy control algorithm.First，by an open-loop test，the control logic was established based on minimum energy consumption heating stages. Subsequently，a multi-stage fuzzy PID control algorithm Was developed to hle SMA nonlinear driving characteristics uncertain factors like load variations， ensuring precise deformation control across diferent camber states.Experimental results demonstrate that the proposed multi-state fuzzy control algorithm may efectively achieve precise deformation control under various variable curvature states. Compared with conventional PID control，the new control algorithm significantly reduces seting time， effctively improves both mean absolute errors maximum overshoots， while maintaining good robustness.

Key words： variable-camber wing; shape memory alloy（SMA）； flexible structure; fuzzy PID control

0 引言

随着航空技术的不断发展，能够根据任务需求、飞行环境自适应改变外形来达到最佳飞行性能的变体飞行器已成为未来飞行器发展的重要方向之一[1-3]。（剩余14903字）
